Rhino lifting

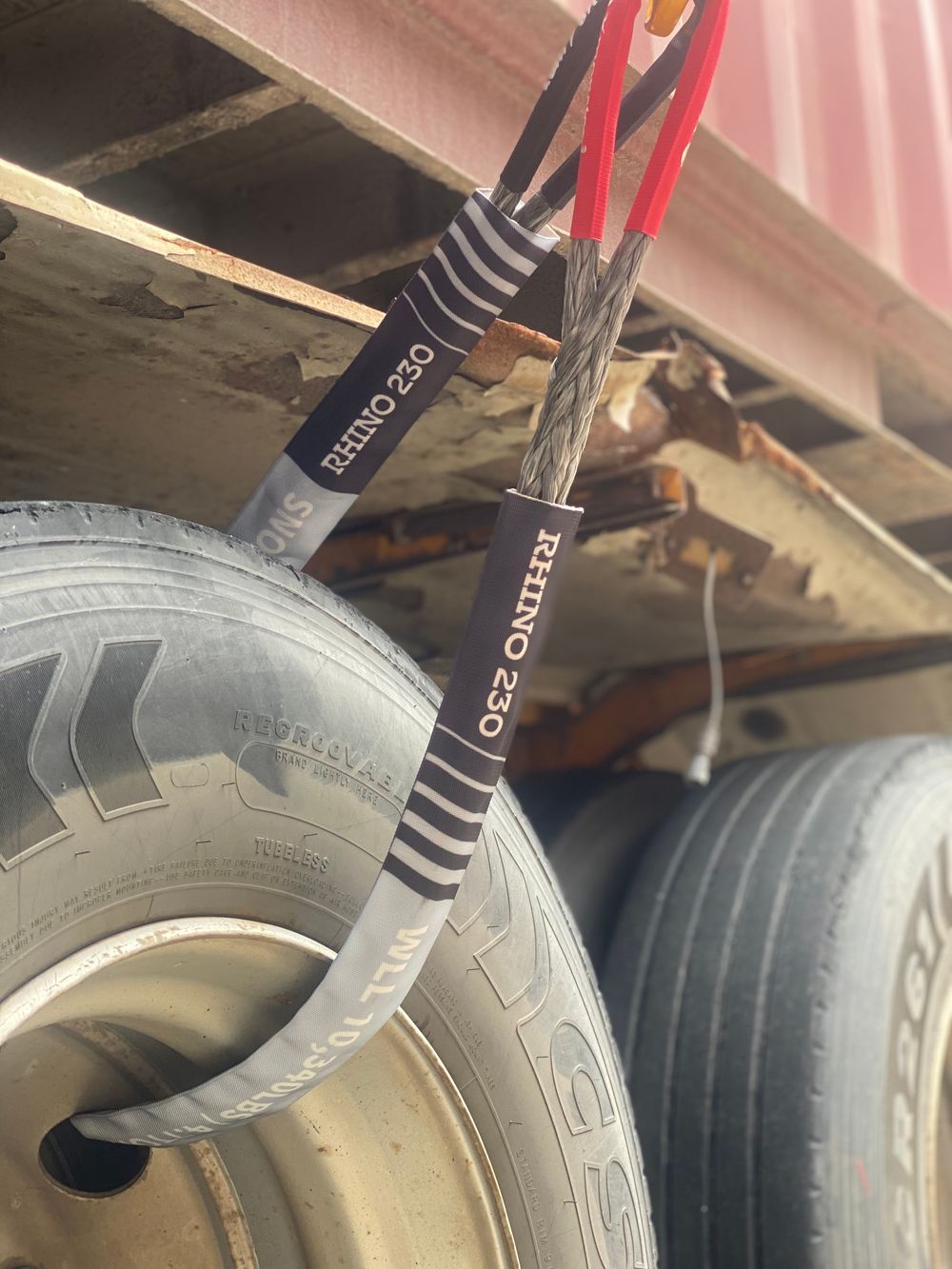

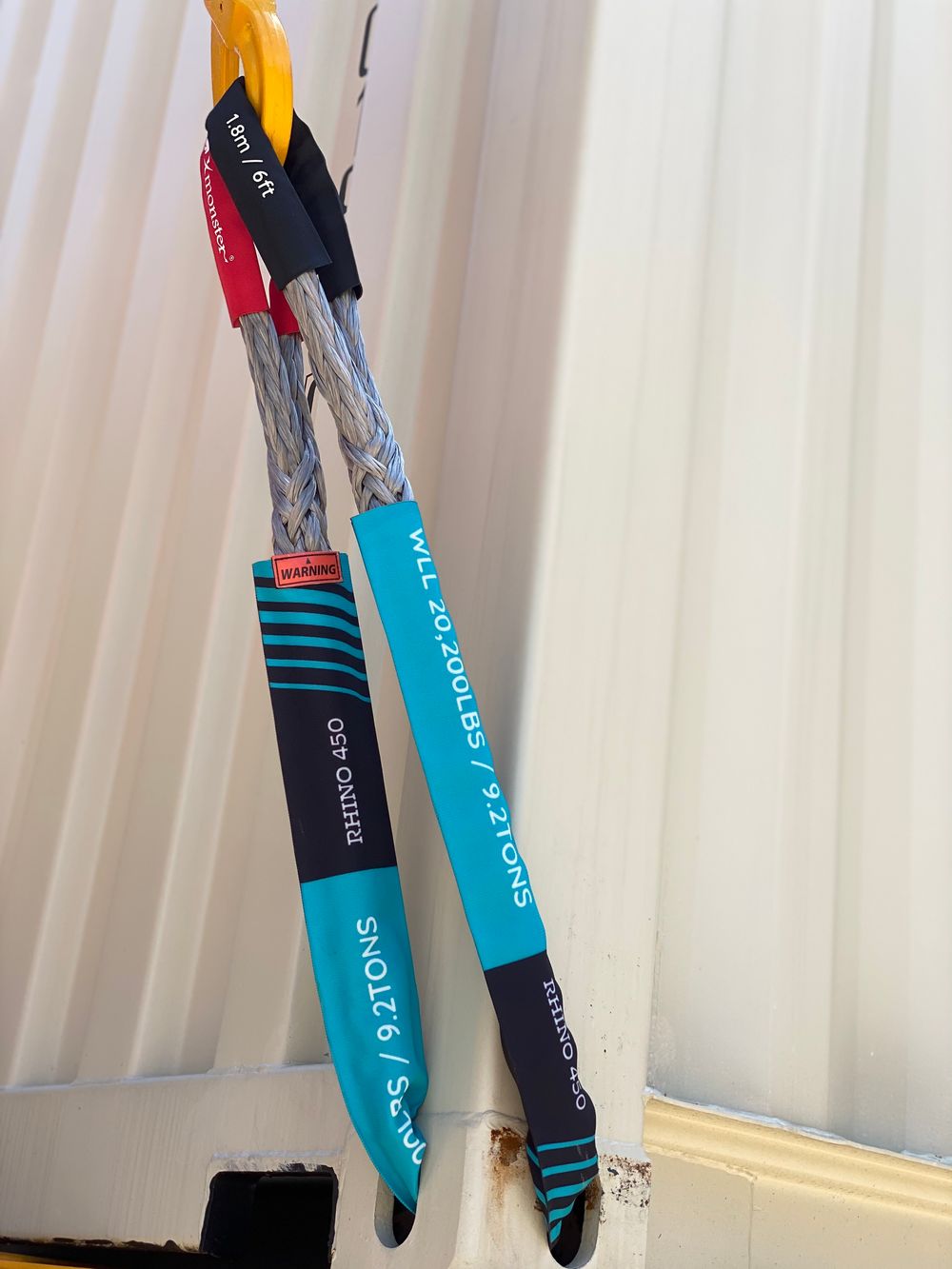

Made with our most premium HMPE fiber, the RHINO HMPE ROPE LIFTING SLING can handle very heavy workloads. It weighs less than 20% of the steel wire equivalents. Our slings are precision engineered with tight tolerances and matches lengths, making them ideal for rigging applications all the way to water rescue scenarios.
Specifications
- Material
- Rope: Premium UHMWPE, Cover: Polyester
- Max Lifespan from Date of Fabrication
- 10 years
- WLL - Straight (Label)
- 13,640, 7,040, 4,500, 10,340, 20,000 lb
- WLL - Choker Hitch
- 11000, 5,720, 3,520, 8,360, 14,700, 11,000 lb
- WLL - Basket Hitch (Vertical)
- 27,280, 14,080 lb, 8,800 lb, 20,680 lb, 40,400 lb, 27,280 lb, 20,680, 7,040 lb
- Nominal Body Width
- 3/4 in, 1/2 in, 3/8 in, 5/8 in, 7/8 in, 5/8, 1/2
- MBS (Label)
- 300, 150, 100, 230, 450 kN
- MBS Imperial
- 68,420 lbf, 35,200 lbf, 22,440 lbf, 51,700 lbf, 101,200 lbf, 51,700, 22,440
- Length
- 6, 1.2, 3, 1.8, 2.4 m
- Width
- 18, 12, 10, 16, 22 mm
- Width - Imperial
- 3/4, 1/2, 3/8, 5/8, 7/8 in
- Length - Imperial
- 20, 4, 10, 6, 8 ft
- WLL - Basket Hitch (60°)
- 4 t
- MBS Metric
- 100 kN
Available in 15 variants
